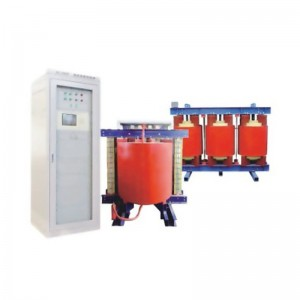

Advanced Phase-Controlled Arc Suppression Coil System

Our complete phase-controlled Arc Suppression Coil system provides accurate ground fault compensation for power grids. The phase-controlled Arc Suppression Coil system uses thyristor-controlled reactance regulation to ensure stable operation of the power grid under various conditions.



The phase-controlled Arc Suppression Coil system represents a major advancement in grid protection technology. This high short-circuit impedance device is connected directly to the distribution network neutral point via its primary winding, while the innovative thyristor control of the secondary winding enables real-time reactance regulation. The intelligent design of the phase-controlled Arc Suppression Coil system automatically compensates for ground faults by precisely regulating the current, preventing dangerous voltage fluctuations and potential equipment damage.



The key to the performance of the phase-controlled Arc Suppression Coil system lies in its revolutionary thyristor control mechanism. By varying the conduction angle between 0 and 180 degrees, the system achieves an infinite impedance adjustment range, from full blocking to full conduction. This stepless control enables the output current to be perfectly matched to network requirements, maintaining optimal compensation regardless of fault conditions. This precision ensures maximum protection while minimizing energy losses throughout the distribution system.



Industrial applications for the phase-controlled Arc Suppression Coil system cover critical infrastructure, including power plants, manufacturing facilities and renewable energy facilities. The technology is particularly valuable in networks with frequent load changes or sensitive electronic equipment. The phase-controlled Arc Suppression Coil system’s fast response capability eliminates ground faults within milliseconds, greatly reducing the risk of power outages and protecting valuable machinery from electrical damage. The rugged construction ensures reliable operation even in harsh environmental conditions.



Operational efficiency sets the phase-controlled Arc Suppression Coil system apart from traditional solutions. The automatically regulating system requires no human intervention while maintaining a perfect compensation balance. The phase-controlled Arc Suppression Coil system’s advanced monitoring features provide real-time system status, enabling predictive maintenance and reducing downtime. Energy savings through minimization of reactive power losses provide both environmental benefits and cost reductions. These features combine to provide an excellent return on investment compared to traditional fixed impedance coils.



Future-proof design principles guided the development of the Phase-Controlled Arc Suppression Coil System, incorporating smart grid compatibility and IoT connectivity options. The system’s modular architecture allows for seamless integration with existing protection equipment while supporting future upgrades. As grids become more complex, this technology offers a scalable solution that can adapt to changing needs. With its unmatched combination of accuracy, reliability and efficiency, the Phase-Controlled Arc Suppression Coil System sets a new benchmark in grid protection technology.
