In today’s rapidly developing power systems, the emergence of various harmonic sources from industrial and civil applications has brought significant challenges to grid stability. The increasing prevalence of these harmonics leads to severe pollution within the power grid, causing resonance and voltage distortion. Such interference can cause critical power equipment to operate abnormally and, in some cases, cause failure. To solve these problems, hybrid var compensator (HVC) emerged as an important solution to improve power quality and ensure reliable operation of electrical systems.

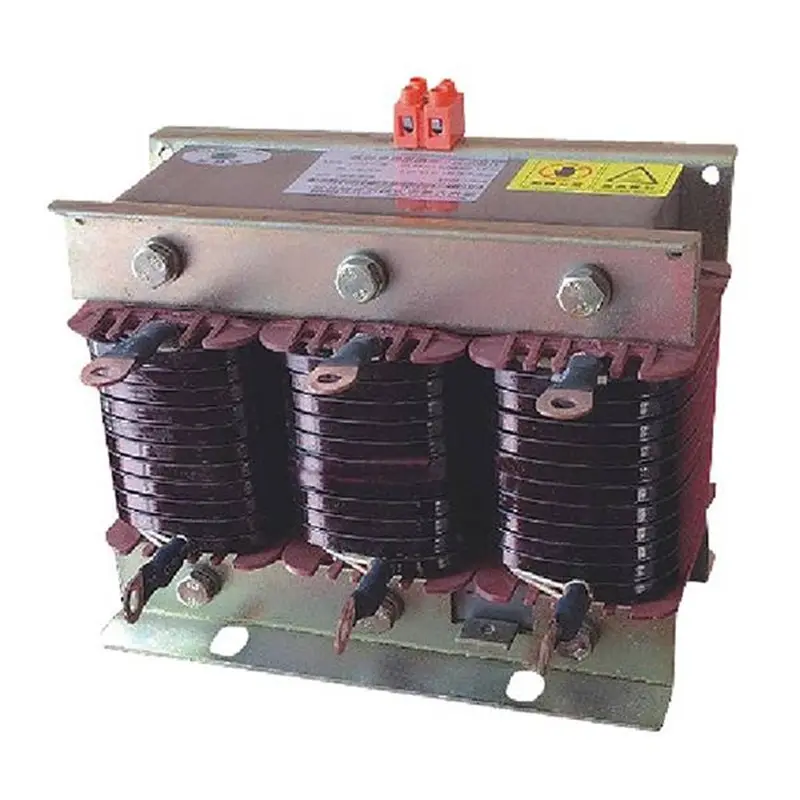

Hybrid VAR compensators operate via intelligently regulated reactors to mitigate the adverse effects of harmonics. By connecting the capacitor and reactor in series, the HVC effectively reduces the resonant frequency below the system minimum. This innovative approach enables capacitance at power frequencies, thereby significantly improving power factor. In addition, it enables inductance at the resonant frequency, thus preventing parallel resonance and avoiding the amplification of harmful harmonics. This dual function is critical to maintaining the integrity of the power system and ensuring that all connected equipment operates within safe parameters.
One of the outstanding features of hybrid reactive power compensators is their ability to effectively absorb harmonic currents. For example, in a system where the 5th harmonic is prevalent, a properly selected capacitor bank can absorb approximately 30% to 50% of the harmonic current. This feature not only reduces overall harmonic distortion, but also improves the overall efficiency of the power system. By minimizing the effects of harmonics, HVC helps provide a more stable and reliable power supply, which is critical for industrial operations and residential applications.
Hybrid VAR compensators are designed with flexibility in mind. Its modular architecture can be easily integrated into existing power systems, making it ideal for retrofitting older installations or enhancing new installations. HVC can be customized to meet specific operational requirements, ensuring it delivers optimal performance regardless of the unique challenges posed by different environments. This adaptability is particularly beneficial in today’s diverse energy landscape, where varying loads and harmonic sources are common.
The hybrid VAR compensator is a key innovation in the field of power quality management. By solving the challenges caused by harmonic distortion and resonance, not only can the functionality of power equipment be guaranteed, but the overall efficiency of the electrical system can also be improved. As the demand for reliable and clean power continues to grow, investing in solutions like HVC is critical for industry and utilities. Embrace the future of power quality with hybrid VAR compensators and ensure your system operates optimally, free from the harmful effects of harmonics.
