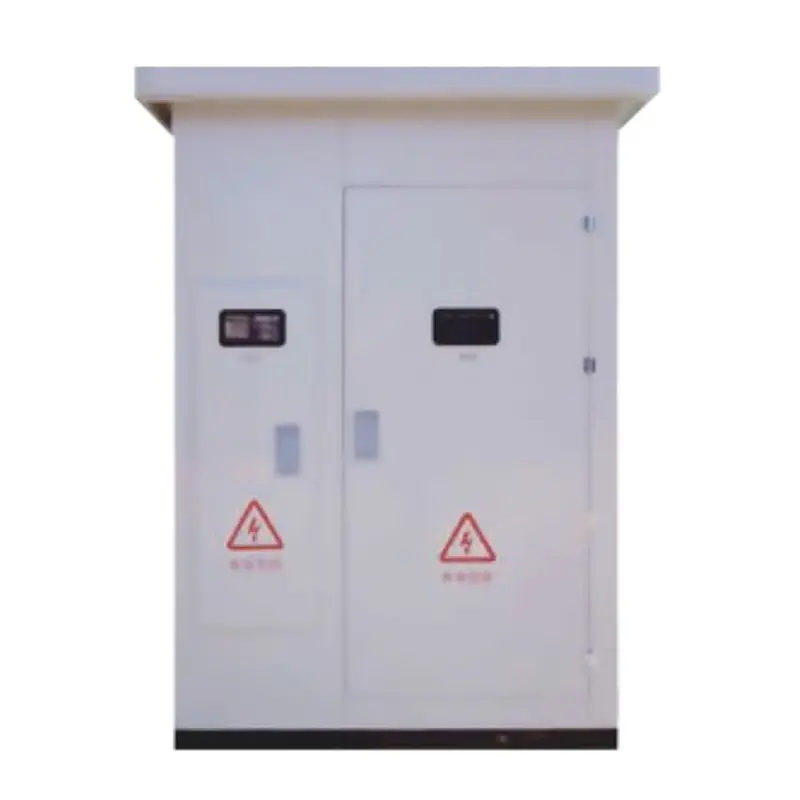

In the field of power grid systems, maintaining balance and stability is critical to ensuring smooth and efficient operation. A key component that plays an important role in achieving this balance is the damping resistor box. This essential device is designed to prevent the neutral point imbalance of the power grid system caused by the input and measurement of the arc suppression coil during normal operation.
When the power grid is operating normally, the pre-adjusted compensation arc suppression coil works to slow down the voltage rise. However, at this time, the inductance and capacitive reactance of the arc suppression coil are approximately equal, which will cause the power grid to be in a state close to resonance. This in turn leads to an increase in the neutral point voltage, potentially disrupting the normal operation of the supply network.
In order to counteract this phenomenon, a damping resistor device is integrated into the pre-adjusted arc suppression coil compensation device. The effect of this addition is to suppress the displacement voltage of the neutral point, ensuring that the neutral point remains in the proper position required for smooth, safe operation of the grid.
The function of the damping resistor box is to provide the necessary resistance to reduce the impact of resonance and maintain the balance of the power grid system. Doing so helps prevent potential disruptions and ensures the overall stability of the power supply network.
In essence, the damping resistance box plays a protective role and effectively solves the challenges caused by the interaction between the arc suppression coil and the power grid system. Its ability to suppress voltage shifts and maintain the neutral point at required levels helps maintain the operational integrity of the grid.
In summary, the integration of damping resistor boxes in the grid system is a key aspect to ensure stability and balance. By understanding their role in mitigating the effects of resonance and maintaining neutral point voltage, we can understand their importance in supporting the seamless operation of power supply networks.
