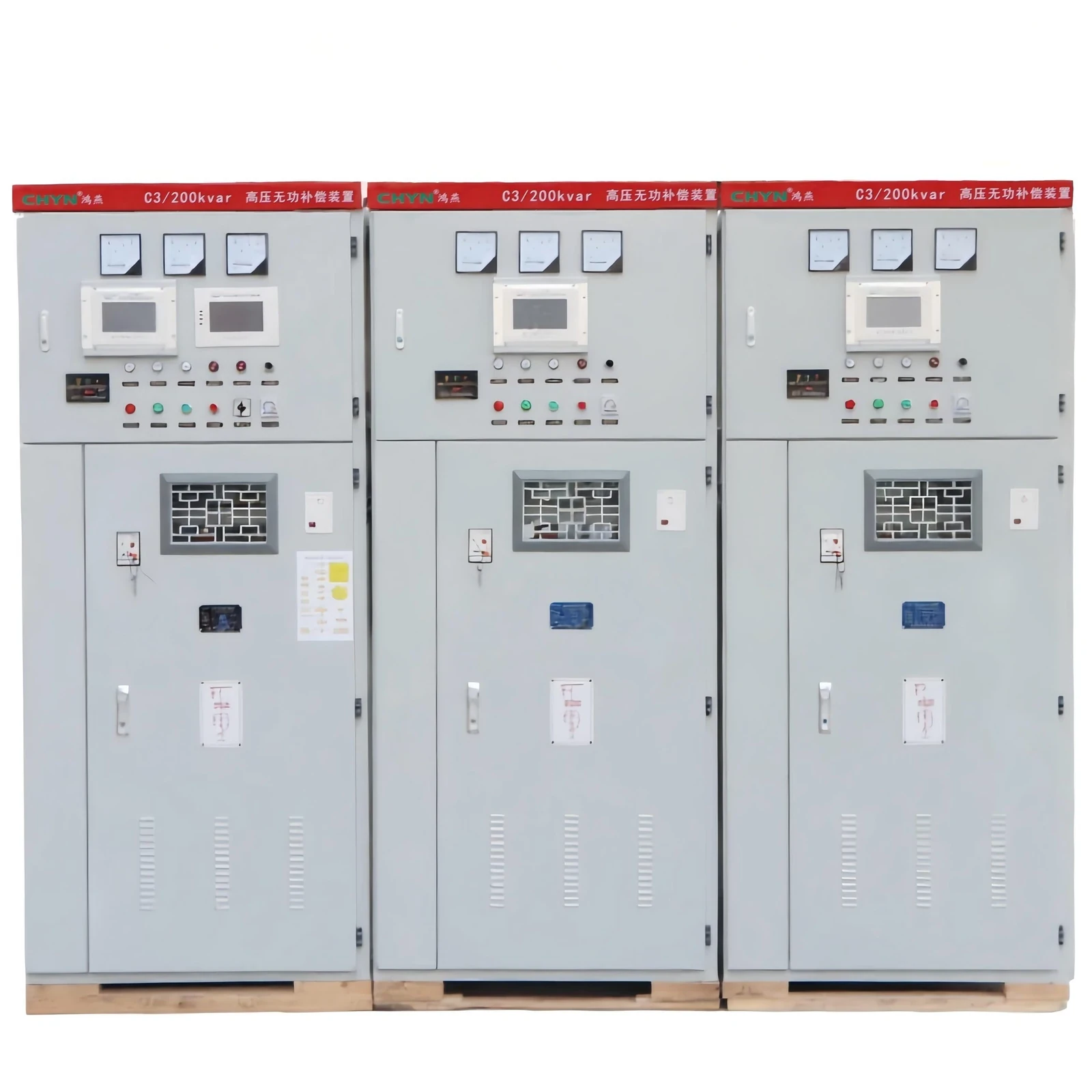

HYTBB Medium and High Voltage Reactive Power Compensation Cabinet

Product Overview

Performance Features

• Uses high-quality three-phase capacitor elements with excellent sealing and low loss characteristics, ensuring stable operation and high discharge voltage.
• The discharge circuit design ensures that the residual voltage drops below 50V within three minutes after disconnection.
• Effectively improves the system power factor up to 0.95 or higher, reducing line current by 10–20%.
• Enhances equipment efficiency, improves voltage stability, and reduces power loss in the distribution network.
• Equipped with live status indicators, electromagnetic locks, and viewing windows for safe and convenient operation.
• Compact cabinet design allows seamless integration with switchgear, providing reliable and synchronized performance.

Main Technical Parameters

Operating Conditions

• Installation Environment: Indoor or outdoor
• Ambient Temperature: −40°C to +45°C
• Relative Humidity: ≤90% (at 25°C)
• Altitude: ≤4500m
• Site Conditions: Free from severe vibration, corrosive gases, steam, or explosive dust.

Working Principle and Features

1. The cabinet mainly includes high-voltage parallel capacitors, reactors, circuit breakers (vacuum type), current transformers, discharge resistors, and control/protection units.
2. It supports automatic or manual group control, allowing the system to adjust reactive compensation levels according to real-time load demand for optimal energy efficiency.
3. Each capacitor group is equipped with discharge resistors that ensure the residual voltage drops below 50V within five minutes after disconnection.
4. Series reactors are used to limit inrush current and suppress harmonics — typically 4.5–6% for 6kV systems and 12–13% for 10kV systems.
5. The cabinet body is designed for excellent thermal and dynamic stability, with observation windows, electromagnetic locks, and reinforced grounding for safety.
6. Adopts anti-condensation design with top-mounted ventilation and pressure-relief mechanisms to prevent internal overpressure.
7. Modular dimensions and customizable layouts are available upon request.
8. The control system provides automatic group switching, monitoring, protection, and communication functions.
9. Equipped with comprehensive protection, including overcurrent, overvoltage, unbalanced load, and short-circuit protection.
10. Designed for long-term operation at 1.0× rated voltage, and can withstand up to 1.3× rated voltage for short durations.
