Load Balancing and Power Quality for Large Buildings: SVG, AHF, and Capacitor Stacks

The best load balancing and power quality solutions for large buildings correct three-phase current imbalance and keep reactive power and harmonics under control on the building distribution system. Typical tools are a static var generator (SVG), an Active power filter / AHF or Hybrid SVG + LC (HYSVGC), and a Capacitor bank / APFC where the load is steady enough. Below you will get the right meaning of three-phase load balancing, a clear UPS contrast, a stack map, and CHYN HYSVG / HYSVGC next steps.

What Load Balancing Means for Large-Building Power Quality

Three-phase load balancing here means bringing the three phase currents closer together while supporting healthy voltage, power factor, and waveform behavior on feeders that serve elevators, HVAC, lighting, and tenant panels.

Electric power quality describes how well voltage, frequency, and waveform match what connected equipment needs. On a three-phase service, Phase / current imbalance belongs in that picture. When one phase carries far more current than the others, transformers and cables run hotter, voltage drops become uneven, and motors take stress that a neat single-line diagram never shows.

That job differs from two phrases that crowd the same search results:

• IT / network load balancing spreads requests across servers. It does nothing for ampere imbalance on a building bus.
• UPS module load sharing keeps backup converters sharing kilowatts during an outage or redundancy test. Useful for continuity; still separate from distribution power-quality correction.

If the building already has a UPS and still shows hot neutrals, nuisance trips, or chronic power-factor penalties, you are looking at a power-quality problem rather than another battery string.

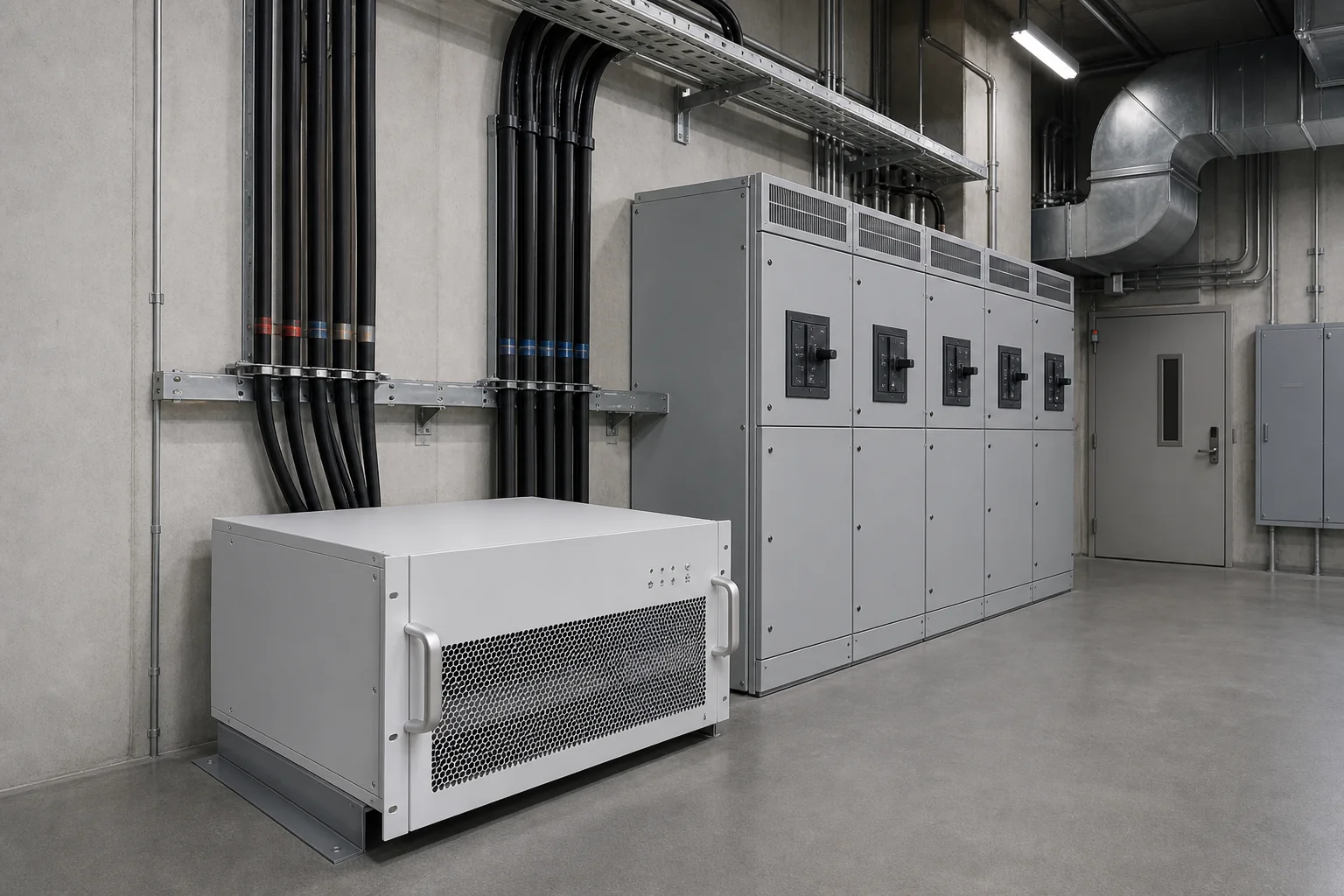

Why Large Buildings Lose Phase Balance and Power Quality

Large commercial and mixed-use buildings create uneven and nonlinear loading almost by design, especially from VFD / elevator / HVAC loads.

Single-phase tenant panels, lighting, receptacles, and some heating loads are often hung wherever spare breaker space existed years ago. Application notes on voltage and current unbalance point to unequal single-phase loading as a primary driver of current unbalance that then pushes voltage unbalance. Elevators, escalators, booster pumps, and chillers add another layer: many run on variable-frequency drives that draw distorted current and swing reactive demand when cars accelerate or HVAC stages.

From the field: On Physics Forums, working engineers note that a few percent of per-phase current imbalance is common on real three-phase motors, while more than roughly five percent is generally treated as unacceptable and worth investigating (thread discussion). Treat that as field language for when to dig deeper.

Internal sources usually dominate. Commercial-property power-quality primers emphasize that many disturbances originate inside the facility or from neighboring tenants on a shared service, rather than only from the utility or weather. That is why “we have UPS” and “we still have power-quality complaints” can both be true in the same tower.

UPS Continuity Is Not the Same as Power-Quality Correction

A UPS keeps critical loads powered through a short interruption or rides through a sag within its design. Search results for building load balancing and power quality often surface modular UPS pages because those products market high availability and parallel modules. That purchase is legitimate for data halls and life-safety transfers, yet it answers a different question.

CHYN does not sell UPS equipment. If the specification is truly for backup power, source a UPS from a supplier that publishes that product line. If the specification is for three-phase imbalance, reactive support, and Harmonics / THD on LV distribution, stay on the power-quality stack below.

Important: Converter-type shunt compensators such as STATCOM / industrial SVG synthesize reactive current with a voltage-source converter and can supply or absorb vars quickly (STATCOM overview). That family differs from an SVC (thyristor) “variable impedance” unit built from TCR/TSC branches (SVC note). Keep UPS paralleling language out of an SVG RFQ.

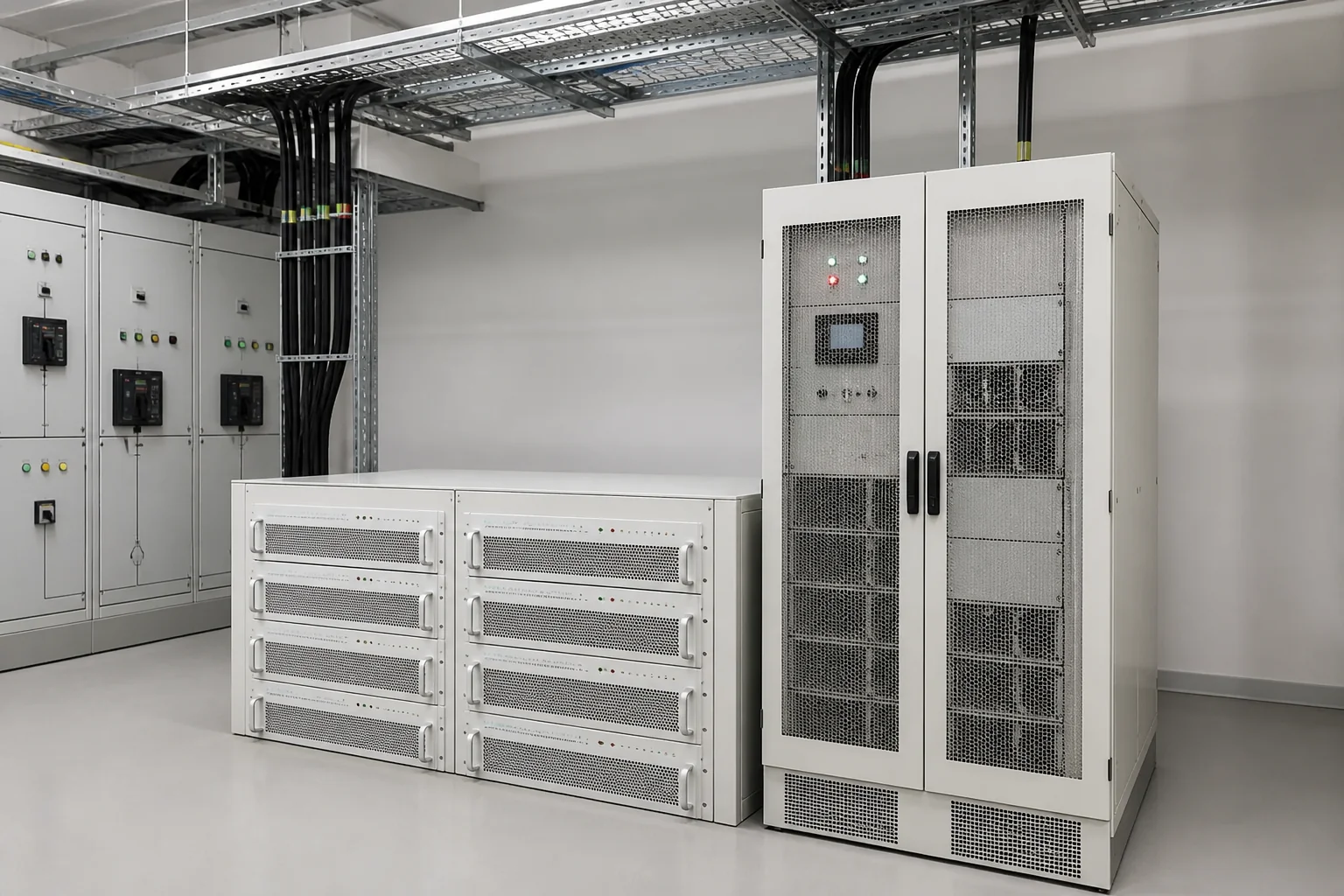

The Building Stack: SVG, Active Filters, Hybrids, and Capacitor Banks

Match the tool to the dominant symptom. Most large buildings need a combination rather than one cabinet for every complaint.

SVG. An industrial Static Var Generator (SVG) injects or absorbs reactive current continuously. Compared with a variable-impedance SVC (thyristor), a VSC-based device is closer to the STATCOM idea: it does not rely on presenting a thyristor-controlled impedance to the bus (engineering comparison). For buildings, that matters when elevators and chillers change every few seconds.

Active filters. When THD and nuisance heating in transformers or neutral conductors dominate, an Active power filter / AHF targets harmonic currents. CHYN’s Active Power Filter Series positions AHF alongside SVG and hybrid devices for harmonic, reactive-current, and three-phase imbalance work.

Hybrids. A Hybrid SVG + LC (HYSVGC) uses electronics for speed and LC for economical steady capacity. That pattern shows up in commercial high-rise projects industry-wide when VFD elevators create both harmonics and reactive spikes—use those cases as pattern recognition only.

Capacitor banks. A Capacitor bank / APFC remains appropriate for stable inductive load and utility power-factor targets. Community discussions contrast fixed capacitors (reactive power falling with voltage squared) with stepless SVC/STATCOM control (Physics Forums discussion). If the PF controller chatters all day, the load is asking for dynamic help.

Tip: Before adding another capacitor step, log phase currents and harmonic spectrum during elevator rush and HVAC peak. A short measurement campaign prevents buying the wrong box. For unbalance mechanisms, see the CHK application note.

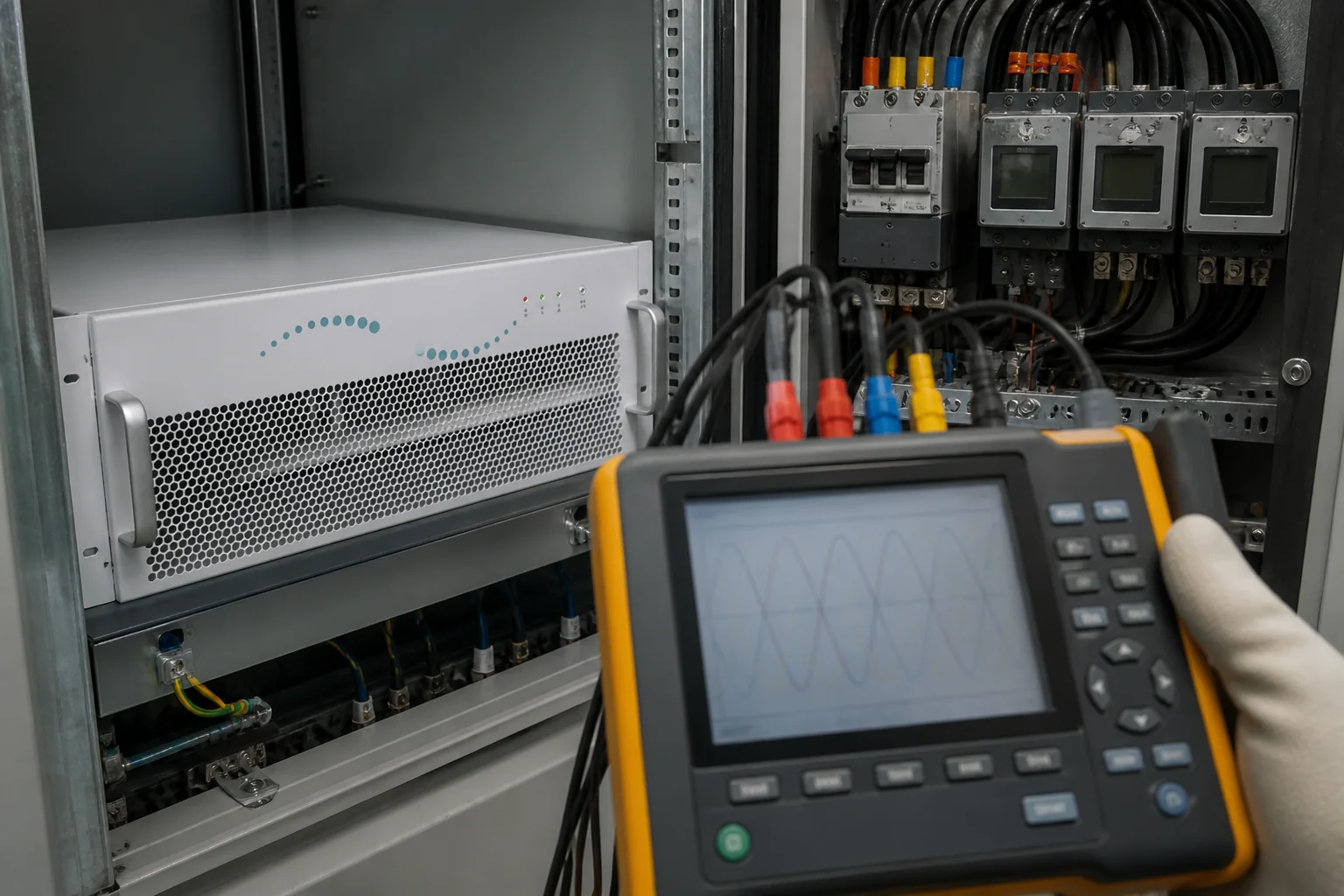

Measure First, Then Match the Tool to the Symptom

Log phase currents, power factor, and Harmonics / THD during occupied hours before you size any cabinet, because measured symptoms decide whether SVG, AHF, hybrid, or capacitors come first.

1. Phase currents and voltage at the main LV bus and at problem risers during occupied hours.
2. Power factor and reactive power trends across a full operating day.
3. Current harmonics, especially where VFDs cluster.
4. Neutral current on four-wire systems with heavy single-phase loads.
5. Operating narrative—which floors, elevator banks, and chillers coincide with alarms.

Then map symptoms to tools: imbalance plus fast VAR → SVG or hybrid; harmonic-dominant → AHF (alone or with VAR support); steady lagging PF with clean waveforms → stepped capacitors may still be enough. Rebalance panels when the wiring mistake is obvious, but breaker reshuffling alone will not fix drive harmonics.

Choose CHYN HYSVG and HYSVGC Products for Building Load Balance

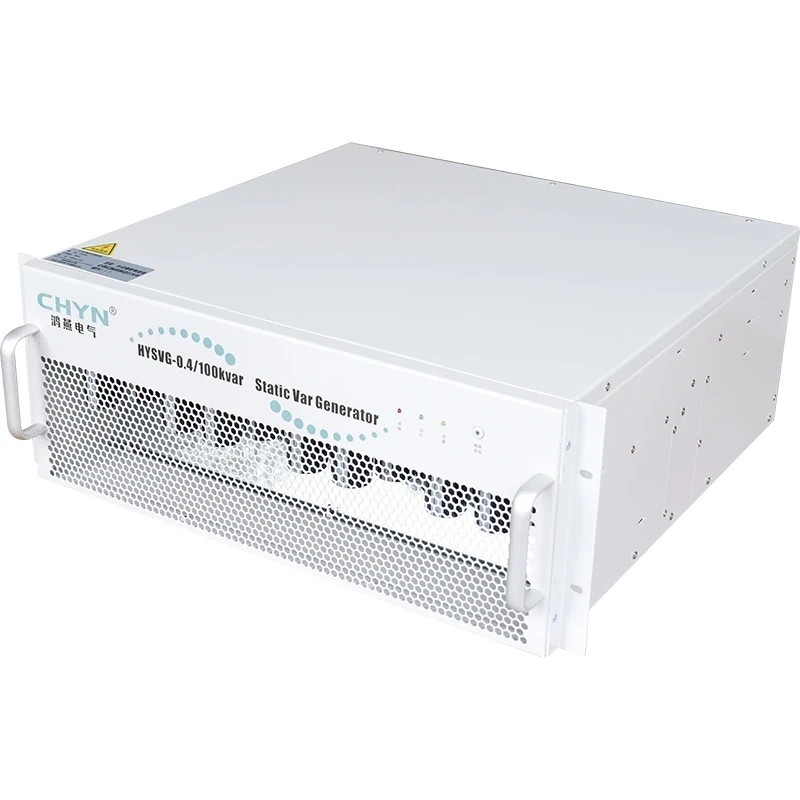

When the building case needs continuous low-voltage inductive and capacitive reactive-current support with current-imbalance correction—without capacitor switching transients—start with the HYSVG Static Var Generator (SVG).

HYSVG listed capacities include 50 kvar, 75 kvar, 100 kvar, and 200 kvar with parallel expansion, a 40 μs current-loop response, 10 ms full compensation time, and overall efficiency at or above 97 percent on the product page.

Published parameter scan.

Browse the wider catalog from the products hub when you need adjacent options. The HYSVGC hybrid combines SVG modules with LC branches for fast dynamics plus high-capacity steady compensation, with published power factor adjustable up to 0.99 and full response under 10 ms on its product page at HYSVGC. For harmonic-first problems, review the HYAPF Active Power Filter under the Active Power Filter Series.

CHYN publishes power-quality products here, while backup UPS remains a separate specification from other suppliers.

FAQ

What does load balancing mean for large-building power quality?

It means correcting uneven three-phase currents and supporting power factor and waveform quality on building feeders—separate from balancing HTTP traffic and from paralleling UPS modules.

How do I fix an unbalanced electrical load in a building?

Measure phase currents, redistribute single-phase panels where practical, then add dynamic compensation (SVG/hybrid) when the imbalance and reactive swings remain after wiring cleanup.

Is a UPS a power quality solution for phase imbalance?

No. A UPS protects continuity during outages. Phase-current imbalance and dynamic VAR/harmonics need power-quality devices such as SVG, AHF, hybrids, or properly applied capacitors.

When should I choose SVG instead of capacitor banks?

Choose SVG when loads change quickly, you need both inductive and capacitive support, or capacitor steps hunt or resonate. Capacitors still fit steady inductive load with acceptable harmonics.

Do elevators and VFDs need harmonic filters as well as VAR support?

Often yes. VFDs create harmonic currents and reactive swings; many sites combine AHF (or hybrid filtering) with dynamic VAR support after a measurement confirms both problems.

What is the difference between voltage unbalance and current imbalance?

Current imbalance is unequal phase amperes; voltage unbalance is unequal phase voltages. Heavy current imbalance from single-phase loading frequently contributes to voltage unbalance on the same feeder.

What CHYN product fits continuous LV imbalance and VAR correction?

Start with HYSVG for continuous inductive/capacitive compensation and current-imbalance correction on LV networks.

When is a hybrid SVG+LC system appropriate?

When you need economical bulk VAR from LC branches plus fast SVG response for impact or elevator-like swings—see HYSVGC.
